DTF Printer
MYJET 60cm All-In-One DTF
MYJET 60cm All-In-One DTF
INQUIRY NOW
INQUIRY NOW

DETAILED INFORMATION

Functions and features


1. Automatic timing of powdering;
2. Automatic unwinding (with stretching rod to make the first meter and the last meter step one to);
3. Built-in smoke purifier;
4. Brushless motors have a long lifespan;
5. Hansen motherboard;
6. No powder leakage, uniform sticky powder.


Technical Parameter
Width of Media600mm
Type of PrintheadsEpson-XP600Epson-i1600Epson-i3200
Type of Printheads222
Printing Speed4pass:6m/hour4pass:8m/hour4pass:10m/hour
6pass:4m/hour6pass:6m/hour6pass:8m/hour
8pass:2m/hour8pass:4m/hour8pass:6m/hour
Ink TypePiqment Ink
Control SystemHoson System
File FormatBMP/TIFF/JPG/EPS/PDF
Data InterfaceRJ-45 Network cable
Material typeThermal melting film
RIP softwareMaintop 6.1, photoprint
Computer confiqurationOperating system win7/win10 64 bit

Hard Disk: 500G or more (Solid state hard disk is recommended), Running memory 8G or more,

Graphics card: ATl independent qraphics card 4G memory,

CPU: i7 processor, Transmission Interface.

Environmental conditionsTemperature: 22-28°
Power RequirementsAC220V,50Hz/60HZ
Dimensions(L*W*H mm)1820*1250*1230mm
Ink tank capacity800ml
Ink supply systemSiphon (positive pressure)




Overview


MYJET 60cm All-In-One DTF

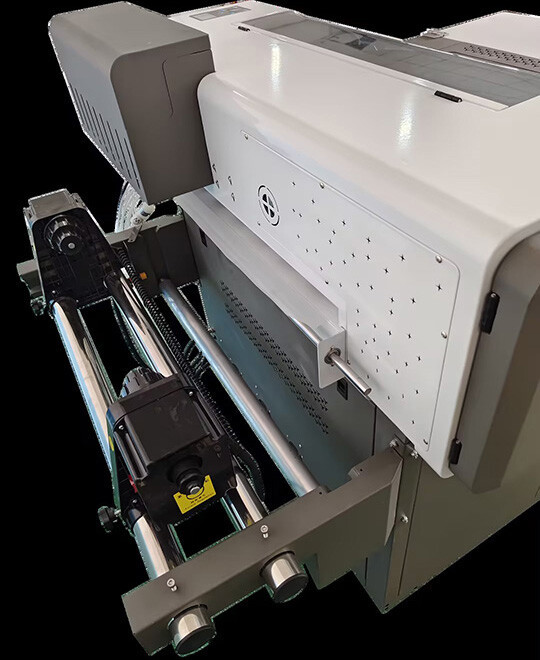

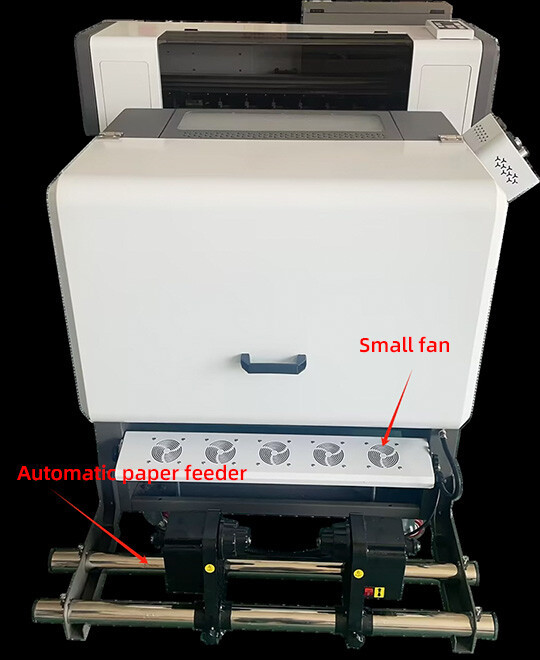

Automatic paper feeding function, no manual paper collection required.


MYJET 60cm All-In-One DTF

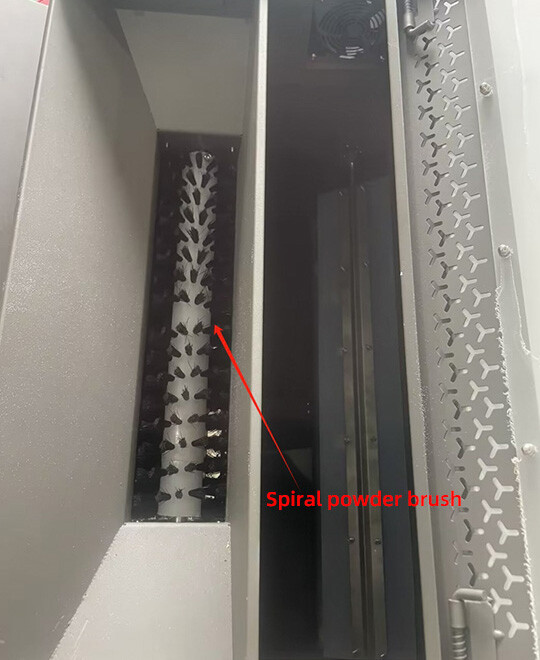

Spiral powder brush that feeds powder at set intervals, ensuring even distribution and preventing powder buildup.

MYJET 60cm All-In-One DTF

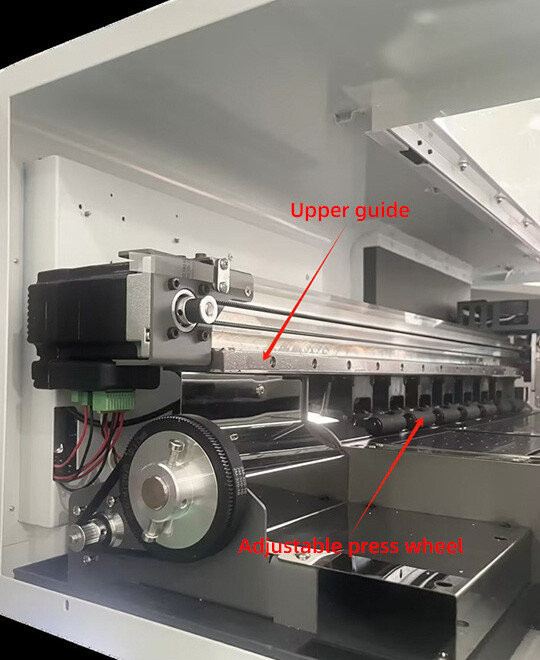

Hiwin guide rail with high precision and low noise.


MYJET 60cm All-In-One DTF

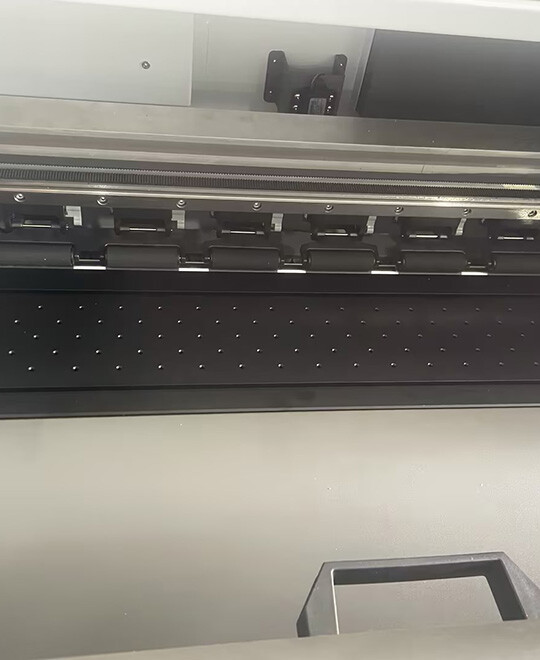

Adjustable paper pressure roller ensures smooth paper feeding without scratching the nozzle.

MYJET 60cm All-In-One DTF

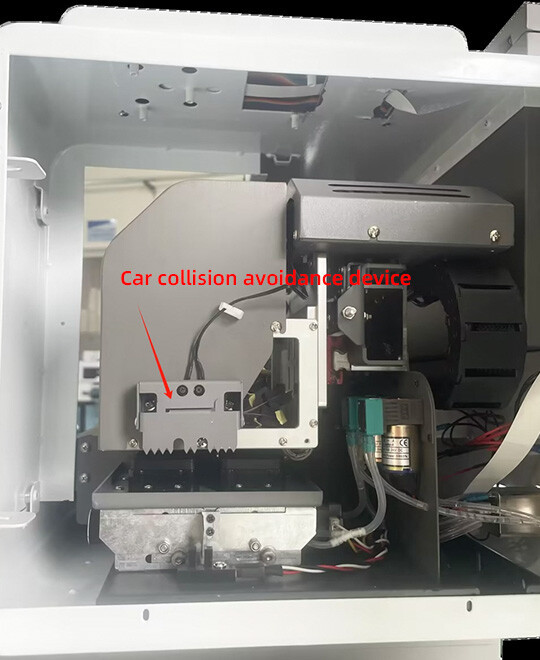

Collision prevention device for the carriage, protecting both the carriage and the nozzle.

MYJET 60cm All-In-One DTF

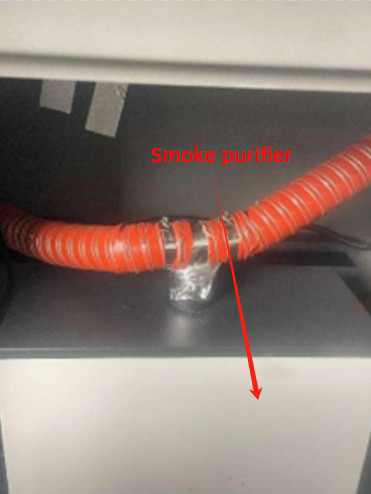

Smoke purification device with powerful suction and low noise, capable of promptly handling the smoke generated during baking.


MYJET 60cm All-In-One DTF

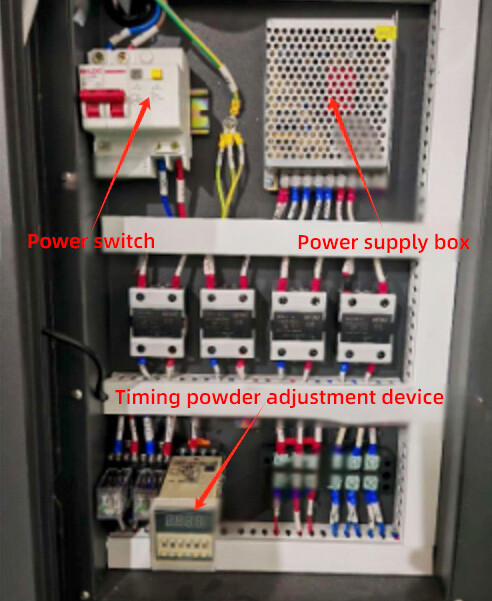

Equipped with a timed powder feeding device, so that users can set the powder feeding time by themselves.

MYJET 60cm All-In-One DTF

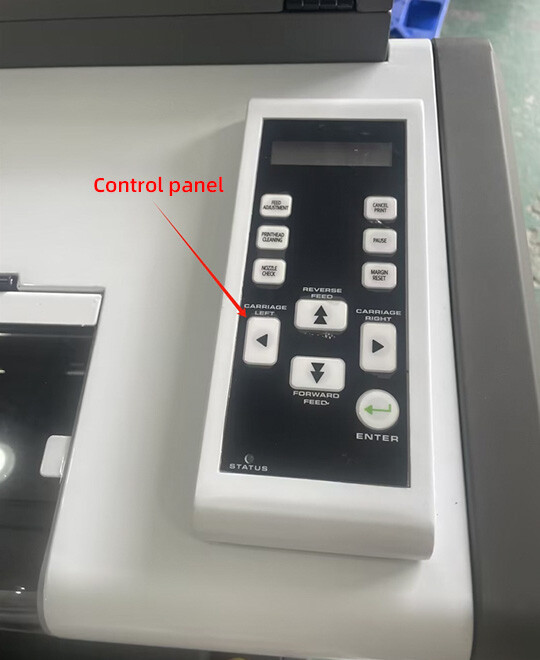

Main control panel for daily maintenance (test strip printing, nozzle cleaning, material feeding, retraction, etc.).

MYJET 60cm All-In-One DTF

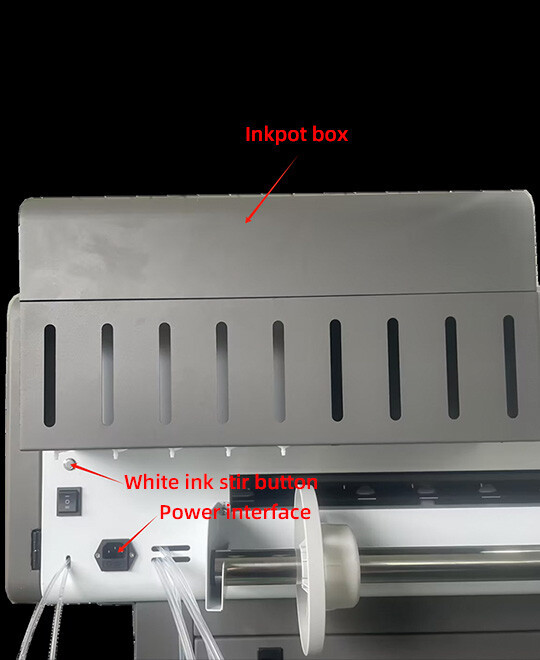

Ink pot box that protects the ink pot and keeps the ink pot area clean.


MYJET 60cm All-In-One DTF

MYJET 60cm All-In-One DTF

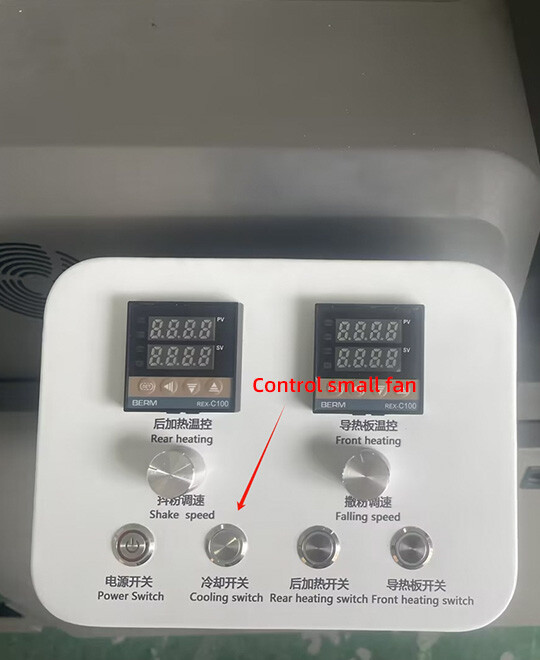

Cooling switch that promptly cools the paper after baking.


Application


MYJET 60cm All-In-One DTF


MYJET 60cm All-In-One DTF


MYJET 60cm All-In-One DTF


MYJET 60cm All-In-One DTF
