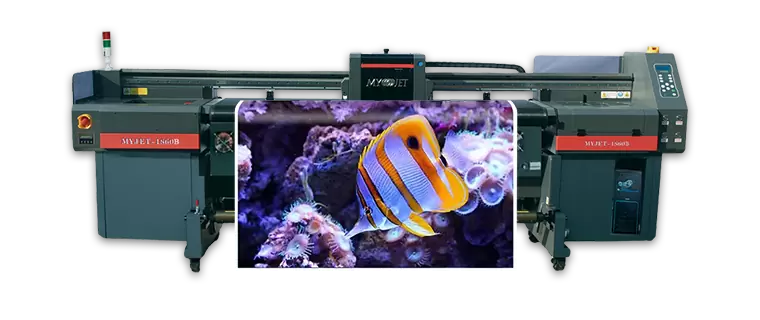

ECO Solvent Printer
MYJET-1860B-ECO
MYJET-1860B-ECO
INQUIRY NOW

DETAILED INFORMATION


Functions and features


1. Guide belt type feeding, printing precision is accurate and controllable;

2. Automatic height measurement printhead with anti-collision protection and independent constant temperature system;

3. Optional plate printing auxiliary platform and material guide components, auxiliary front and rear rollers for roll materialsprinting;

4. Heavy-duty inflatable shaft, Drum feeding system, can bear heavy load and force uniformly on taking-up and feeding systemwith long service life:

5. High precision aluminum ink capping system with self-reset protection.











Technical Parameter
Type of PrintheadsEPSON i3200-E1 4 unit
Width of Media1850mm
Printing Precision4PASS、6PASS、8PASS
Printing SpeedsDraft model86㎡/h
Production mode64㎡/h
Precision model42 ㎡/h
Ink SupplyPositive pressure continuous ink supply
Curing Mode/Ink TypeInfrared drying and heating system
Control SystemHoson system
Data InterfaceNetwork interface
Rip SoftwareRlprint/Photoprint
Ink Cartridge Volume2L
Computer ConfigInteli7-7and Above,USB3.0,Gigabit Ethernet,8G RAM,SSD
Power4600W
Machine DimensionL*W*H:3550mm*860mm*1360mm
Net Weight/Gross Weight650kg/750kg
The Operating Environment

emperature equipment operating 15'C-30°C(recommended 20°C28°C)

Humidity equipment20%-80%(recommended 40%-60%)

The Printing MaterialLeather, floor MATS, carpets, photo materials, PU, PVC and otherspecialindustry coils


Application
