ECO Solvent Printer

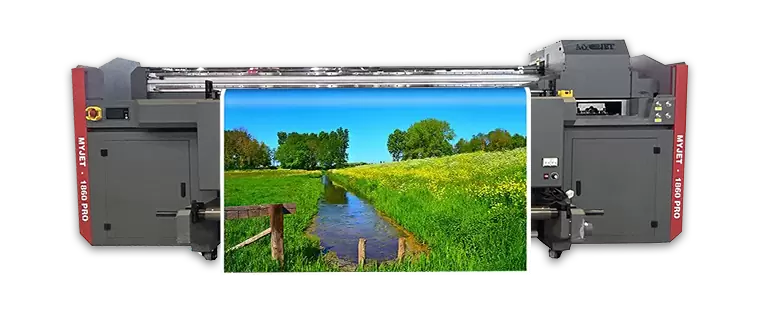

MYJET-1860 PRO-ECO
MYJET-1860 PRO-ECO
INQUIRY NOW

DETAILED INFORMATION


Functions and features


  1. Guide belt type feeding, printing precision is accurate and controllable;

  2. Standard automatic head height measurement, head anti-colision protection function,standard ink level display function, so that the ink batery life is clear at a glance;

  3. Feeder is equipped with expansion rod, front and rear with a pressing rod device, completely solve the material wrinkle problem;Sliding edge-pressing device for leather printing is optional, special materials can be printed without edge warping, and the nozzle can be better protected.

  4. Heavy air expansion shaft, roller feeding system, large bearing weight, long service life, uniform feeding and receiving;

  5. High-precision dual negative pressure system, equipped with the third-generation intelligent metal secondary ink cartridge,equipped with automatic ink lock function after shutdown and ink constant temperature system;

  6. High-strenath industrial body can be matched with up to 6 Epson 13200 sprinklers, easily achieve the use of hioh precision.high speed requirements.

  7. Adopting a high-power infrared air drying system, effectively solving the problem of high-speed printing materials not drying and unable to be rolled up.


















Technical Parameter
Type of PrintheadsEPSON i3200-E1 6 unit
Width of Media1850mm
Printing Precision4PASS、6PASS、8PASS
Printing SpeedsDraft mode120㎡/h
Production mode90㎡/h
Precision model60㎡/h
Ink SupplyPositive pressure continuous ink supply
Curing Mode/Ink TypeInfrared drying and heating system
Control SystemHoson system
Data InterfaceNetwork interface
Rip SoftwareRIprint/Photoprint
Ink Cartridge Volume1.5L
Computer ConfigIntel i7-7 and Above, USB3.0, Gigabit Ethernet, 8G RAM, SSD
Power7500W
Machine DimensionL*W*H:3800mm*1700mm*1400mm
Net Weight/Gross Weight1300kg/1400kg
The Operating Environment

Temperature:equipment operating 15'C-30'℃ (recommended 20°C-28°C)

Humidity equipment 20%-80%(recommended 40%-60%)

The Printing MaterialLeather, floor MATS, carpets, photo materials, PU, PVC and other specialindustry coils


Application
